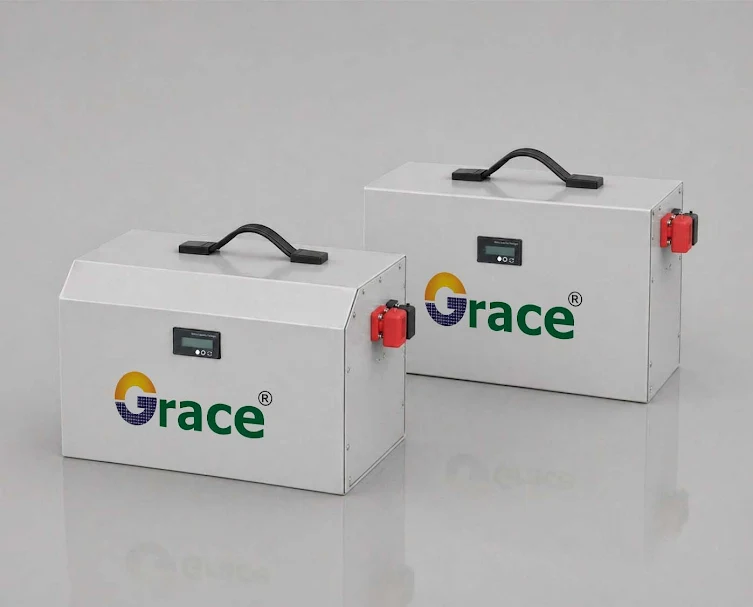

BESS (Battery Energy Storage System) is a high-performance lithium-ion battery designed for residential, small commercial, and industrial energy storage applications. This advanced battery system provides reliable backup power,peak shaving, and demand response capabilities
BESS (Battery Energy Storage System) is a high-performance lithium-ion battery designed for residential, small commercial, and industrial energy storage applications. This advanced battery system provides reliable backup power, peak shaving, and demand response capabilities.
| Model Name | GRE12.8V100H | GRE25.6V100H |
|---|---|---|
| Nominal Voltage (V) | 12.8 | 25.6 |
| Capacity (Ah) | 100 | 100 |
| Capacity (kWh) | 1.28 | 2.56 |
| No. of cell in series | 4 | 8 |
| No. of cell in parallel | 1 | 1 |
| Total No. of cell | 4 | 8 |
| Cell Type | Prismatic, 100Ah | |
| Chemistry | LFP | |
| BMS Type | Smart | |
| Maximum cut-off voltage (V) | 14.6 | 29.2 |
| Minimum cut-off voltage (V) | 11.2 | 22.4 |
| Charging Voltage (V) | 14.6 | 29.2 |
| Recommended charging current (A) | 30 | 30 |
| Maximum charging current (A) | 50 | 50 |
| Recommended discharging current (A) | 50 | 50 |
| Maximum Continuous discharging current (A) | 100 | 100 |
| Cycle Life (80% DOD, 25°C, 0.5C/0.5C) | ≥3500 | |
| Cell Over Voltage Protection | 3.65 | |
| Cell Over Voltage Release | 3.5 | |
| Cell Over Voltage Protection | 2.7 | |
| Cell Under Voltage Release | 2.8 | |
| Cell under voltage protection | Yes | |
| Cell over voltage Protection | Yes | |
| Over current protection | Yes | |
| Short circuit protection | Yes | |
| Temperature protection | Yes | |
| Ingress protection | IP20 | |
| Dimension (L×W×H) mm | (120×180×185) | (250×230×180) |
| Power Connector | 2 Pole Connector | |
| Weight (kg) | 10.5 (Approx.) | 26.5 (Approx.) |
| Communication Connector | UART (Display) | |
