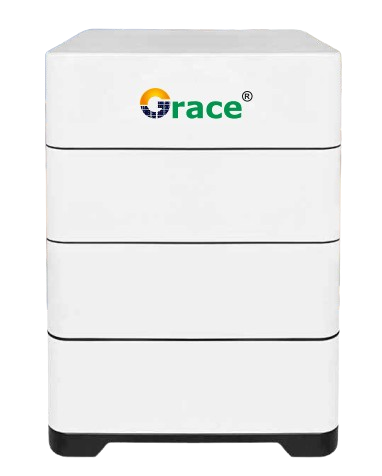

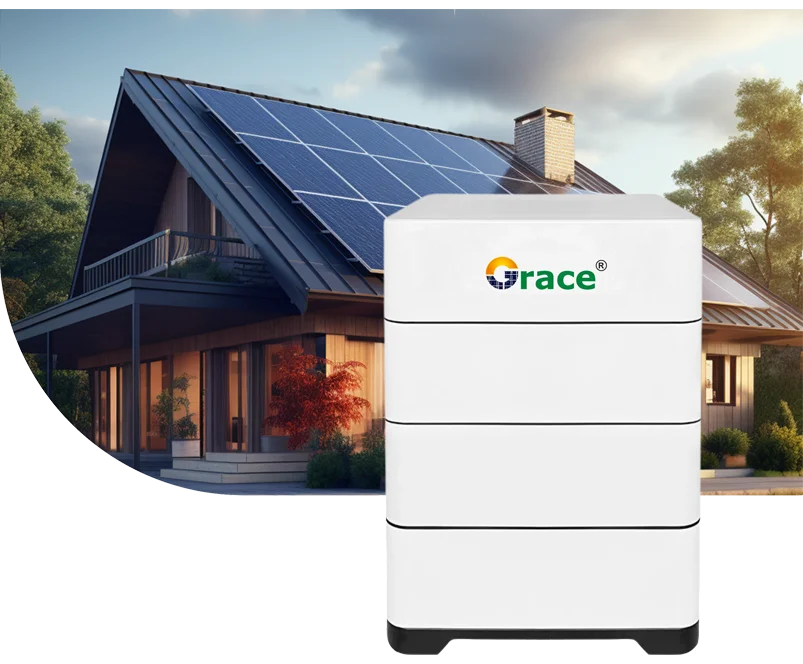

A Residential Stackable ESS Solution is a smart and scalable energy storage system designed to meet modern household power needs. As a trusted Residential Energy Storage System Manufacturer, we offer advanced stackable battery solutions that allow homeowners to expand storage capacity as energy demands grow. These systems integrate battery modules, inverter, and intelligent energy management into a compact design, making them ideal for solar energy storage, backup power, and energy cost optimization. As an All In One Energy Storage System Manufacturer, our solutions ensure high efficiency, seamless installation, enhanced safety, and reliable performance for residential applications.
| Model Name | GRE48V50AH | GRE51.2V50AH | GRE48V200AH | GRE51.2V200AH | GRE51.2V230AH |
|---|---|---|---|---|---|
| Specification | 48V 50AH | 51.2V 50AH | 48V 200AH | 51.2V 200AH | 51.2V 230AH |
| Combination | 15S1P | 16S10 | 15S1P | 16S1P | 16S1P |
| Capacity | 2.4kWh | 2.56kWh | 9.6kWh | 10.24kWh | 11.77kWh |
| Standard discharge current | 25A | 25A | 100A | 100A | 115A |
| Max. Discharge current | 50A | 50A | 200A | 200A | 115A |
| Standard voltage | 48V | 51.2V | 48V | 51.2V | 51.2V |
| Max. charging current | 25A | 25A | 100A | 100A | 100A |
| Max. Charging voltage | 53.25V | 56.8V | 53.25V | 56.8V | 56.8V |
| Cycle | 3000~6000 @ 80%/25 degree C/0.5C | ||||
| Working humidity | 65~80% RH | ||||
| Operating temperature | 0 ~ 50 | ||||
| Working altitude | <2500 | ||||
| Cooling method | Natural cooling | ||||
| Battery type | Cabinet/ Rack mount | ||||
| Protection level | IP 20 | ||||
| Warranty | 5-10 years | ||||
| Communication | Default: RS485/RS232/CAN Optional: Wifi/4G/Bluetooth | ||||
| Certification | CE ROHS FCC UN38.3 MSDS / IEC 62619:2022 | ||||
| Product size | 350x350x175 | 350x350x175 | 900x450x185 | 900x450x185 | 581x560x250mm |
| Net weight | 19Kg | 19.5Kg | 96Kg | 110Kg | 117Kg |
