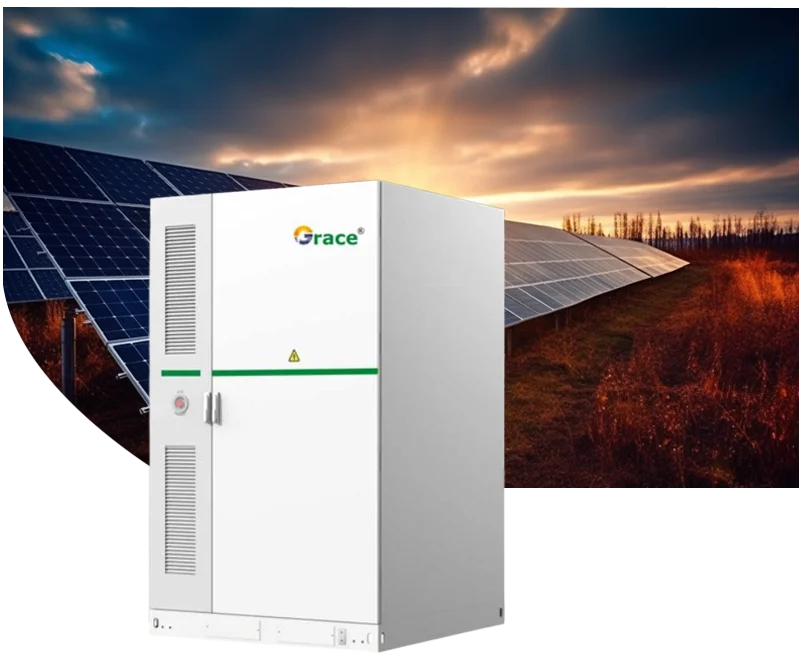

UPS batteries
| Product Model | GRE |
|---|---|
| Battery Side | |
| Cell Capacity | 60Ah, 100Ah, 280Ah, 314Ah etc. |
| Cell Chemistry | LFP |
| Nominal Voltage | 24V – 720V |
| Nominal Capacity | 1kWh-1MWh |
| Supported Charge | ≤ 0.2C |
| Supported Charge & Discharge Rate | ≤ 0.5C |
| Protection | |
| Overvoltage Protection | Yes |
| Overcurrent Protection | Yes |
| Short-circuit Protection | Yes |
| Over-temperature Protection | Yes |
| General Data | |
| Max. Efficiency | ≤ 94% (Excluding self consumption) |
| Operating Temperature Range | -20 to 50°C |
| Operating Humidity Range | 0 - 95%RH |
| Noise | ≤ 75dB |
| Dimensions (W*H*D) | 1200*2300*1350mm |
| Weight | 2000Kg |
| Protection Degree | IP55 |
| Cooling Method | Air Cooling |
| Fire Protection Method | Pack-level+Active Forewarning |
| Max. Operating Altitude | ≤ 2,000m |
| Networking Mode | LAN |
